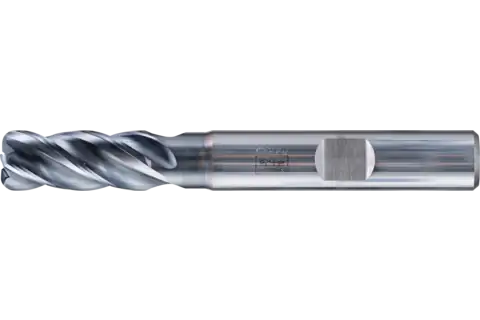

Universal end mill with four cutting edges UC4, Radius corner design
VHM corner mill long, 4 blades, diameter 8 mm, radius 1.5 mm TiAlN shank HB Universal Line roughing finishing slot cutting
Technical information
VHM corner mill long, 4 blades, diameter 8 mm, radius 1.5 mm TiAlN shank HB Universal Line roughing finishing slot cutting
- Coating
- TiAlN
- Corner radius RE
- 1.5 mm
- Corner type
- Radius corner design
- Cutting diameter DC
- 8 mm
- Cutting edge count ZEFP
- 4 pcs.
- Cutting material
- AL40
- Depth of cut maximum APMX
- 19 mm
- Feed direction
- x,y,(z)
- Functional length LF
- 63 mm
- Helix angles
- 35°/38°
- Internal coolant
- no
- Neck diameter DN
- 7.46 mm
- Norm
- DIN 6527 Long
- Shank diameter DCON
- 8 mm
- Shank type
- HB (DIN6535)
- Usable length LU
- 27 mm
- Version
- 90° with radius
- Packaging unit
- 1 piece
Description
Advantages
Recommendations for use
- Materials that can be worked
- Applications
- Drive types
