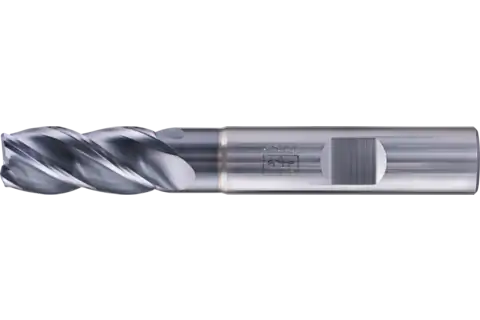

Universal end mill with four cutting edges UC4, Radius corner design

VHM corner mill long, 4 blades, diameter 12 mm, radius 1.0 mm TiAlN shank HB Universal Line roughing finishing slot cutting

Item number:
23000166
EAN:
4007220462706

Login / Register
Choose options
Corner radius RE
Cutting diameter DC
Shank type
Technical information
VHM corner mill long, 4 blades, diameter 12 mm, radius 1.0 mm TiAlN shank HB Universal Line roughing finishing slot cutting

Coating
TiAlN
Corner radius RE
1 mm
Corner type
Radius corner design
Cutting diameter DC
12 mm
Cutting edge count ZEFP
4 pcs.
Cutting material
AL40
Depth of cut maximum APMX
26 mm
Feed direction
x,y,(z)
Functional length LF
83 mm
Helix angles
35°/38°
Internal coolant
no
Neck diameter DN
11.5 mm
Norm
DIN 6527 Long
Shank diameter DCON
12 mm
Shank type
HB (DIN6535)
Usable length LU
38 mm
Version
90° with radius
Packaging unit
1 piece
Description

The solid tungsten carbide end mills are suitable for universal use on a variety of materials.

End mills for various applications, from roughing through to finishing.

The radius design is also suitable for free-form profile cutting.

Weldon shank HB in accordance with DIN 6535 with lateral driving surface.

Advantages
  • High productivity due to optimum stock removal rate.
  • Long tool life due to modern tool coating.
  • Design with neck chip channel.
Recommendations for use
  • Observe the recommended cutting data.
  • Ensure stable workpiece and tool clamping to achieve best performance.
Materials that can be worked
Aluminium
Annealed cast iron
Black annealed cast iron (GTS, GJMB)
Brass
Bronze
Case-hardened steels
Casting scale
Cast iron
Cast steel
Chipboard
Cobalt-based alloys
Copper
Ductile cast iron
Ferrite (magnetic material)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hard aluminium alloys
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Hard non-ferrous metal
Hardwood
High-temperature-resistant materials
Mill scale
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Plastics
Roller-bearing and ball-bearing steels
Scale
Soft aluminium alloys
Soft non-ferrous metal
Stainless steel (INOX)
Steel
Steel, cast steel
Steels over 700 N/mm² (> 220 HB)
Steels up to 1,200 N/mm² (< 38 HRC)
Thermoplastics
Titanium
Titanium alloys
Tool steels
Tough aluminium alloys
White annealed cast iron (GTW, GJMW)
Wood
Zinc
Applications
Milling
Drive types
Stationary machines
