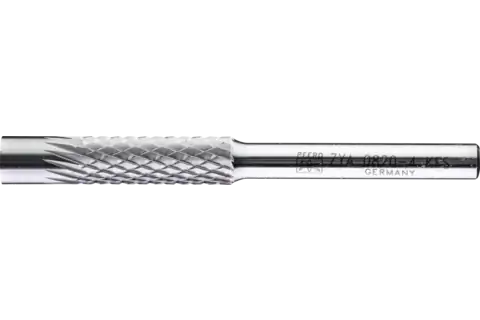

Tungsten carbide copy milling burr 7 mm cylindrical ZYA dia. 08x30 mm shank dia. 6 mm Z4 universal medium fine

Technical information

Cut: 4
Dia. external: 8 mm
Dia. shank: 6 mm
Length, construction: 7 mm
Length, cut: 30 mm
Length, total: 77 mm
RPM, hard non-ferrous metals: 10.000 - 14.000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 10.000 - 14.000 RPM
RPM, high-temperature-resistant materials: 10.000 - 18.000 RPM
RPM, rust and acid-resistant steels: 10.000 - 18.000 RPM
Packaging unit: 1 piece

Description

Tungsten carbide copy milling burrs by PFERD TOOLS are the perfect tools for levelling elevations, such as weld seams. Thanks to the uncut area, the weld seam can be adjusted to the level of the surrounding surface without this being damaged. Copy milling burrs are used in particular in the repair of cutting and punching blades in tool and mould-making.

Tungsten carbide copy milling burrs with cut 4 are designed for coarse stock removal.

Cylindrical burr.

Advantages

Long tool life and high surface quality.
The uncut area provides optimum contour guidance and protects the workpiece against damage.
Reduced machining time.

Recommendations for use

For accurate contour guidance, copy milling burrs can be used with guide aids.
Observe the recommended rotational speeds.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked: Bronze; Case-hardened steels; Cast steel; Cobalt-based alloys; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Drive spindle; Flexible shaft drive; Straight grinder

Downloads

Tungsten carbide copy milling burrs, cut 4, cylindrical shape ZYA without end cut

Tungsten carbide copy milling burr 7 mm cylindrical ZYA dia. 08x30 mm shank dia. 6 mm Z4 universal medium fine

ZYA 0830/6 Z4 7MM KFS
