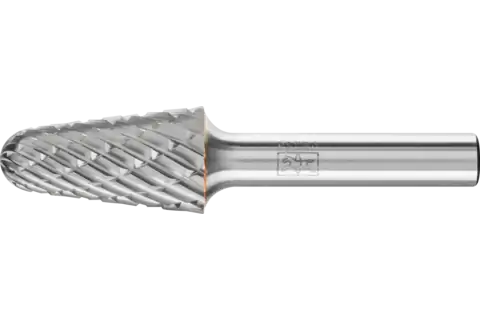

Tungsten carbide high-performance burr NON-FERROUS conical shape with radius end KEL dia. 16x30 mm shank dia. 8 mm non-ferrous metals

Technical information

Tungsten carbide high-performance burr NON-FERROUS conical shape with radius end KEL dia. 16x30 mm shank dia. 8 mm non-ferrous metals

Angle: 14 °
Cut: NON-FERROUS
Dia. external: 16 mm
Dia. shank: 8 mm
Length, cut: 30 mm
Length, total: 70 mm
RPM, hard non-ferrous metals: 12000 - 18000 RPM
RPM, soft non-ferrous metals: 9000 - 12000 RPM
RPM, thermoplastics, fibre-reinforced plastics (GRP/CRP): 12000 - 22000 RPM
Radius corner design: 4.8 mm
Packaging unit: 1 piece

Description

PFERD TOOLS has developed the NON-FERROUS cut for general-purpose use on non-ferrous metals and fibre-reinforced plastics. This cut is characterized by its high stock removal rate.

Conical burr with round radius end according to DIN 8032.

Special features

Very good stock removal rate when used on non-ferrous metals such as brass and copper, plastics and fibre-reinforced plastics.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
Observe the recommended rotational speeds.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 8 mm with drives with a power output from 300 watts.

Materials that can be worked: Brass; Bronze; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hard non-ferrous metal; Plastics; Thermoplastics; Zinc

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine

Downloads

brochure-tc-burrs-alu-cut-2020-web-en.pdf

Tungsten carbide burrs for high performance, NON FERROUS, conical shape with radius end KEL

Tungsten carbide high-performance burr NON-FERROUS conical shape with radius end KEL dia. 16x30 mm shank dia. 8 mm non-ferrous metals

KEL 1630/8 NON-FERROUS
