Tungsten carbide burrs for general use, cut 5, pointed tree shape SPG

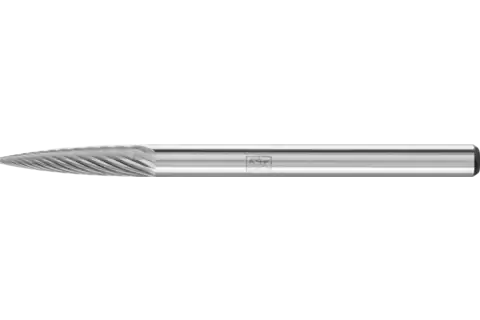

Tungsten carbide burr pointed tree SPG dia. 03x13 mm shank dia. 3 mm Z5 universal fine

Item number:
21222653
EAN:
4007220049938

Login / Register
Choose options
Dia. external
Dia. shank
Length, cut
Length, total
Technical information
Tungsten carbide burr pointed tree SPG dia. 03x13 mm shank dia. 3 mm Z5 universal fine

Cut
5
Dia. external
3 mm
Dia. shank
3 mm
Length, cut
13 mm
Length, total
1,693
Length, total
43 mm
RPM from, hard non-ferrous metals
37000 RPM
RPM from, hardened, heat-treated steels over 1,200 N/mm²
37000 RPM
RPM from, high-temperature-resistant materials
37000 RPM
RPM from, rust and acid-resistant steels
37000 RPM
RPM from, steels up to 1,200 N/mm²
48000 RPM
RPM to, hard non-ferrous metals
48000 RPM
RPM to, hardened, heat-treated steels over 1,200 N/mm²
48000 RPM
RPM to, high-temperature-resistant materials
64000 RPM
RPM to, rust and acid-resistant steels
48000 RPM
RPM to, steels up to 1,200 N/mm²
64000 RPM
Packaging unit
1 piece
Description

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface.

Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

Pointed tree-shaped burr according to DIN 8032 with cut conforming to DIN 8033, flattened tip.

Advantages
  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
  • Long tool life.
  • The highly accurate concentricity enables impact­free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
  • High surface quality.
Recommendations for use
  • If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
  • To ensure cost­effective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 3 mm with drives with a power output of 75 to 300 watts.
Materials that can be worked
Bronze
Case-hardened steels
Cast steel
Cobalt-based alloys
Hard aluminium alloys
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Hard non-ferrous metal
High-temperature-resistant materials
Nickel-based alloys (e.g. Inconell and Hastelloy)
Stainless steel (INOX)
Steel
Steel, cast steel
Steels over 700 N/mm² (> 220 HB)
Steels up to 1,200 N/mm² (< 38 HRC)
Steels up to 700 N/mm² (< 220 HB)
Titanium
Titanium alloys
Tool steels
Applications
Cutting out holes
Deburring
Leveling
Milling
Milling out
Surface work
Work on weld seams
Drive types
Drive spindle
Flexible shaft drive
Robot
Stationary machines
Straight grinder
Tool machine
