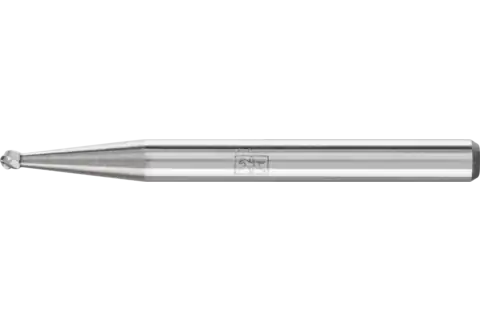

Tungsten carbide burr ball KUD dia. 1.5x1 mm shank dia. 3 mm Z3P universal medium cross cut

Technical information

Tungsten carbide burr ball KUD dia. 1.5x1 mm shank dia. 3 mm Z3P universal medium cross cut

Cut: 3 PLUS
Dia. external: 1.5 mm
Dia. shank: 3 mm
Length, cut: 1 mm
Length, total: 33 mm
RPM, grey cast iron, white cast iron: 95.000 - 127.000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 53.000 - 74.000 RPM
RPM, harte NE-Metalle: 53.000 - 74.000 RPM
RPM, rust and acid-resistant steels: 53.000 - 74.000 RPM
RPM, soft non-ferrous metals: 95.000 - 127.000 RPM
Packaging unit: 1 piece

Description

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.

Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033.

Advantages

Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
High surface quality.

Recommendations for use

To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 3 mm with drives with a power output of 75 to 300 watts.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels; White annealed cast iron (GTW, GJMW)

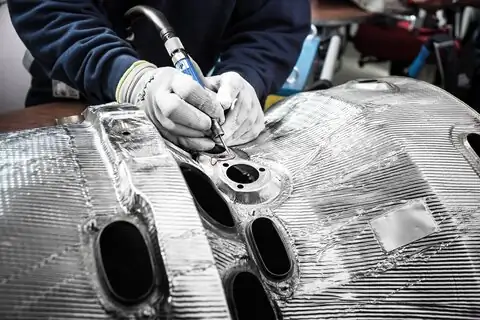

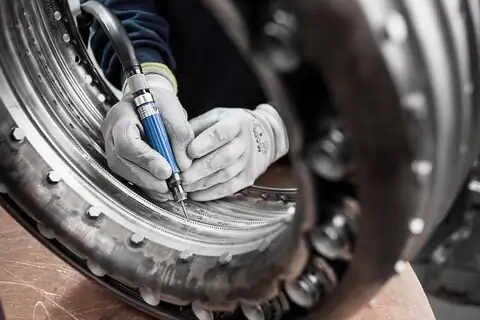

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

Downloads

Tungsten carbide burrs for general use, cut 3 PLUS ball shape KUD

Tungsten carbide burr ball KUD dia. 1.5x1 mm shank dia. 3 mm Z3P universal medium cross cut

KUD 01,51/3 Z3 PLUS
