POLIFAN CURVE
The patented flap disc POLIFAN CURVE has been specially developed for work on fillet welds.
It is the only flap disc in the world that has flaps on both the grinding side and on the rear side, as well as on the radius.
Advantages:
- High stock removal rate ensures fast work progress and therefore significant wage cost savings.
- Precise and optimum grinding of the fillet weld geometry.
- Outstanding tool life when working on fillet welds.
Recommendations for use:

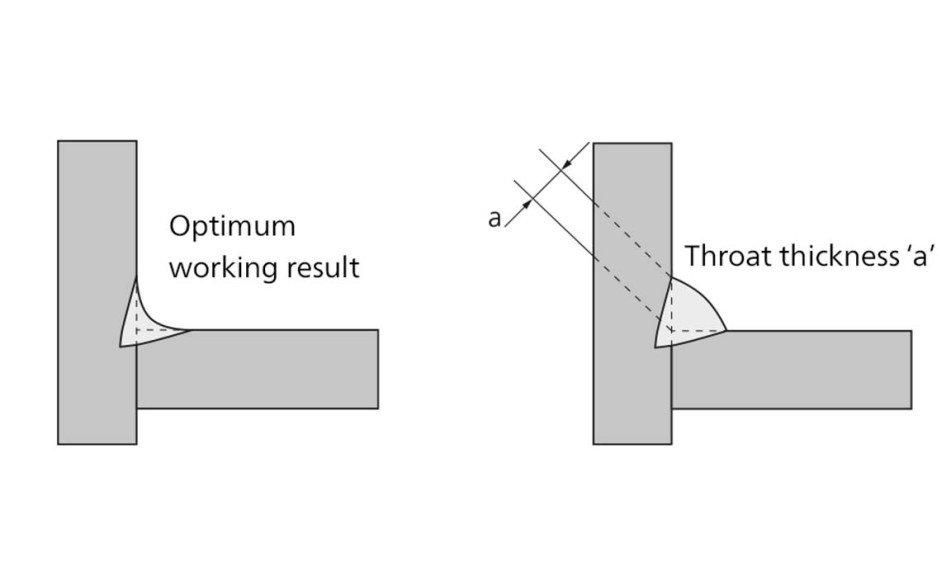

- Type M: For fillet weld radii > 5 mm or throat thickness ≤ 6 mm with 90° joint,
width at the radius: 11 mm or 14 mm with diameter 150 mm. - Type L: For fillet weld radii > 8 mm or throat thickness > 6 mm with 90° joint,
width at the radius: 14 mm or 16 mm with diameter 150/180 mm.
