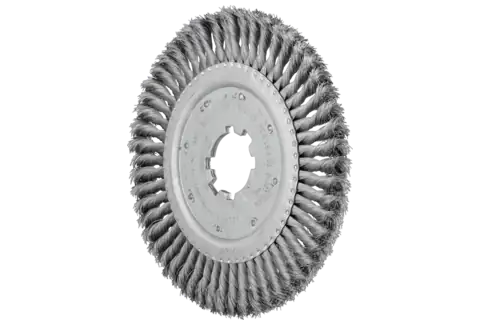

Wheel brush knotted RBG dia. 250x16x50.8 mm hole steel wire dia. 0.35 mm stationary

Technical information

Wheel brush knotted RBG dia. 250x16x50.8 mm hole steel wire dia. 0.35 mm stationary

Dia. external: 250 mm
Dia. filament material: 0.35 mm
Dia. hole: 50.8 mm
Dia. thread: -
Filament material: Steel wire (ST)
Length, filament: 41 mm
Max. RPM: 4500 RPM
Mounting system: Centre hole
Number, knots: 54 pcs.
Packaging: Industrial packaging
RPM, optimum: 2.000 - 3.400 RPM
Width: 16 mm
Packaging unit: 1 piece

Description

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Aggressive and robust brush that is able to withstand high mechanical loads. Suitable for all heavy-duty stationary and automated brushing, e.g. deburring work.

Advantages

Aggressive brushing effect due to the very stiff wire knots.
Long tool life through use of PFERD TOOLS special wire.
Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.

Recommendations for use

Please observe the recommended rotational speeds.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Stationary machines

Downloads

Wheel brushes, knotted

Wheel brush knotted RBG dia. 250x16x50.8 mm hole steel wire dia. 0.35 mm stationary

RBG 25016/50,8 ST 0,35
