Wheel brushes, knotted

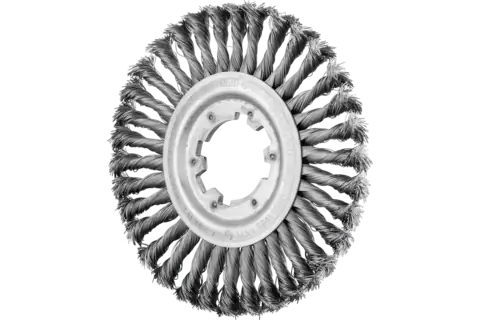

Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary

RBG 20016/50,8 ST 0,50
Item number:
43310015
EAN:
4007220956557
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 1
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 2
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 3
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 1
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 2
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary 3
Technical data Change variant
Login / Register
Retailers-Search
Choose options
Dia. external
Dia. filament material
Filament material
Mounting system
Packaging unit
Reset Filter

Matching accessories & spare parts

Arbor for brushes with hole
Arbor for brushes with hole BO 12/22,2 200
Adapter, arbor hole adapter
Adapter, arbor hole adapter APM 50,8/16-20
Adapter, arbor hole adapter
Adapter, arbor hole adapter APM 50,8/22,2-30
Adapter, arbor hole adapter
Adapter, arbor hole adapter APM 50,8/32-40
Technical information
Wheel brush knotted RBG dia. 200x16x50.8 mm hole steel wire dia. 0.50 mm stationary
Dia. external
200 mm
Dia. filament material
0.5 mm
Dia. hole
50.8 mm
Dia. thread
-
Filament material
Steel wire (ST)
Length, filament
44 mm
Max. RPM
8500 RPM
Mounting system
Centre hole
Number, knots
34 pcs.
Packaging
Industrial packaging
RPM, optimum
4.000 - 6.500 RPM
Width
16 mm
Packaging unit
1 piece
Description

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 °C.

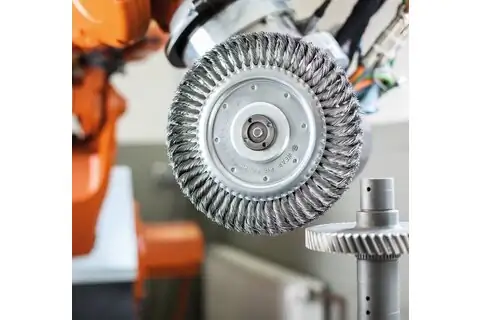

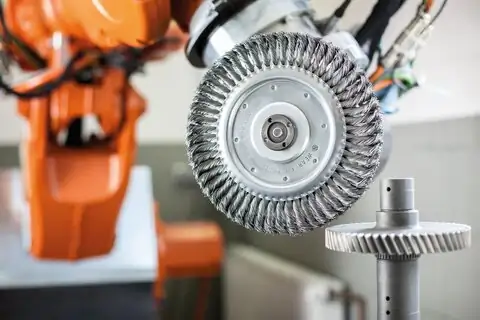

Aggressive and robust brush that is able to withstand high mechanical loads. Suitable for all heavy-duty stationary and automated brushing, e.g. deburring work.
Advantages
  • Aggressive brushing effect due to the very stiff wire knots.
  • Long tool life through use of PFERD TOOLS special wire.
  • Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.
Recommendations for use
  • Please observe the recommended rotational speeds.
Materials that can be worked
Cast iron
Cast steel
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Applications
Cleaning
Deburring
Derusting
Descaling
Paint stripping
Removing oxide layers
Root seam processing
Work on fillet welds
Work on weld seams
Drive types
Drive spindle
Flexible shaft drive
Stationary machines
Straight grinder
Downloads
wzh25-catalogue-8-web-int-en.pdf
See more

Matching tool drive

Robot spindles for stationary application PGAS 11/58 RS
Robot spindles for stationary application PGAS 11/58 RS PGAS 11/58 RS
