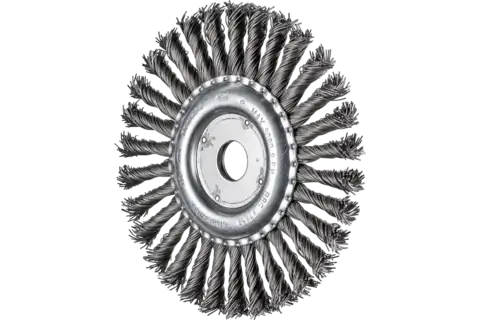

Wheel brush knotted RBG dia. 178x13x22.2 mm steel wire dia. 0.80 mm angle grinders

Technical information

Wheel brush knotted RBG dia. 178x13x22.2 mm steel wire dia. 0.80 mm angle grinders

Dia. external: 178 mm
Dia. filament material: 0.8 mm
Dia. hole: 22.2 mm
Dia. thread: -
Filament material: Steel wire (ST)
Length, filament: 38 mm
Max. RPM: 9000 RPM
Mounting system: Centre hole
Number, knots: 30 pcs.

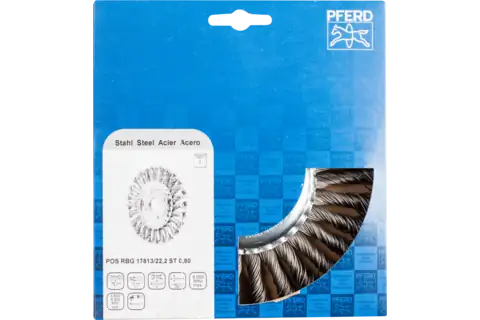

Packaging: POS packaging
RPM, optimum: 4.500 - 8.500 RPM
Width: 13 mm
Packaging unit: 1 piece

Description

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Aggressive brush. Suitable for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter.

Advantages

Aggressive brushing effect due to the very stiff wire knots.
Long tool life through use of PFERD TOOLS special wire.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle; Flexible shaft drive; Straight grinder

Downloads

Wheel brushes, knotted

Wheel brush knotted RBG dia. 178x13x22.2 mm steel wire dia. 0.80 mm angle grinders

POS RBG 17813/22,2 ST 0,80
