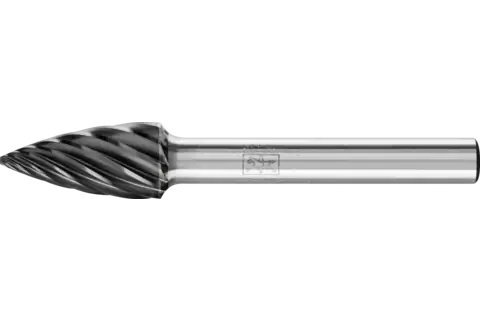

Tungsten carbide burrs for high performance, INOX HC-STS, pointed tree shape SPG

Tungsten carbide high-performance burr INOX pointed tree SPG dia. 10x20 mm shank dia. 6 mm HICOAT stainless steel

SPG 1020/6 INOX HC-STS

Item number:: 21122681
EAN:: 4007220222409

Tungsten carbide high-performance burr INOX pointed tree SPG dia. 10x20 mm shank dia. 6 mm HICOAT stainless steel 1

Tungsten carbide high-performance burr INOX pointed tree SPG dia. 10x20 mm shank dia. 6 mm HICOAT stainless steel 2

Technical data Change variant

Retailers-Search

Choose options

Cut

INOX HC-STS

Dia. external

10 mm 12 mm

Dia. shank

6 mm

Length, cut

20 mm 25 mm

Length, total

60 mm 65 mm

Reset Filter

Technical information

Tungsten carbide high-performance burr INOX pointed tree SPG dia. 10x20 mm shank dia. 6 mm HICOAT stainless steel

Cut: INOX HC-STS
Dia. external: 10 mm
Dia. shank: 6 mm
Length, cut: 20 mm
Length, total: 60 mm
RPM, hard non-ferrous metals: 8000 - 19000 RPM
RPM, rust and acid-resistant steels: 14000 - 24000 RPM
RPM, soft non-ferrous metals: 8000 - 19000 RPM
Packaging unit: 1 piece

Description

High-performance cut INOX with HICOAT coating HC-STS is characterized by its high degree of hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Pointed tree-shaped burr according to DIN 8032, flattened tip.

Special features

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.

Materials that can be worked: Hard non-ferrous metal; Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine
