Tungsten carbide burrs for high performance, INOX HC-FEP, ball shape KUD

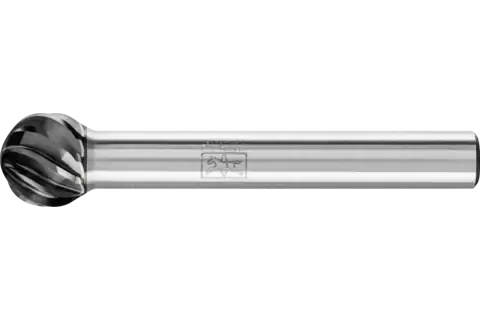

Tungsten carbide high-performance burr INOX ball KUD dia. 10x09 mm shank dia. 6 mm HICOAT for stainless steel

KUD 1009/6 INOX HC-FEP

Item number:: 21112781
EAN:: 4007220222348

Tungsten carbide high-performance burr INOX ball KUD dia. 10x09 mm shank dia. 6 mm HICOAT for stainless steel 1

Technical data Change variant

Retailers-Search

Choose options

Dia. external

10 mm 12 mm

Dia. shank

6 mm

Length, cut

9 mm 10 mm

Length, total

49 mm 51 mm

Reset Filter

Technical information

Tungsten carbide high-performance burr INOX ball KUD dia. 10x09 mm shank dia. 6 mm HICOAT for stainless steel

Cut: INOX HC-FEP
Dia. external: 10 mm
Dia. shank: 6 mm
Length, cut: 9 mm
Length, total: 49 mm
RPM, hard non-ferrous metals: 8.000 - 19.000 RPM
RPM, rust and acid-resistant steels: 14.000 - 24.000 RPM
RPM, soft non-ferrous metals: 8.000 - 19.000 RPM
Packaging unit: 1 piece

Description

High-performance cut INOX with HICOAT coating HC-FEP is characterized by its high degree of hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Ball-shaped burr according to DIN 8032.

Advantages

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.

Materials that can be worked: Hard non-ferrous metal; Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Robot; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends burrs with the HICOAT coating for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.
