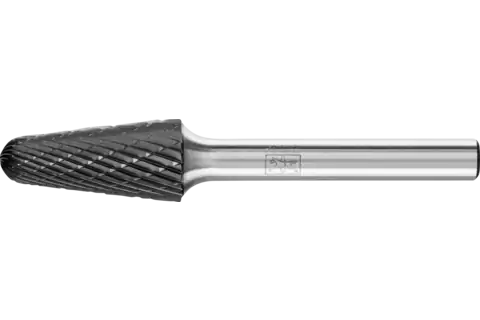

Tungsten carbide high-performance burr conical shape with radius end KEL dia. 12x25 mm shank dia. 6 mm Z3P HICOAT universal

Technical information

Angle: 14 °
Cut: 3 PLUS HC-FEP
Dia. external: 12 mm
Dia. shank: 6 mm
Length, cut: 25 mm
Length, total: 65 mm
RPM, grey cast iron, white cast iron: 16000 - 20000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 7000 - 12000 RPM
RPM, high-temperature-resistant materials: 16000 RPM
RPM, rust and acid-resistant steels: 12000 RPM
RPM, steels up to 1,200 N/mm²: 12000 - 20000 RPM
Radius corner design: 3.3 mm
Packaging unit: 1 piece

Description

Cut 3 PLUS with HICOAT coating HC-FEP is characterized by its high hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Conical burr with round radius end according to DIN 8032 with cut conforming to DIN 8033.

Special features

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked: Annealed cast iron; Brass; Bronze; Case-hardened steels; Cast steel; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends burrs with the HICOAT coating for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.

Downloads

Tungsten carbide burrs for general use, cut 3 PLUS HC-FEP, conical shape with radius end KEL

Tungsten carbide high-performance burr conical shape with radius end KEL dia. 12x25 mm shank dia. 6 mm Z3P HICOAT universal

KEL 1225/6 Z3 PLUS HC-FEP
